Description
Convex diamond lattice trellis is a pressure-treated decorative panel with a curved top, suitable for fence topping, climbing plants and lighter garden screening. The convex profile rises above the stated shoulder height to create the arched finish.
Available sizes
| Product code | Shoulder height | Width | Approx. maximum height |
|---|---|---|---|

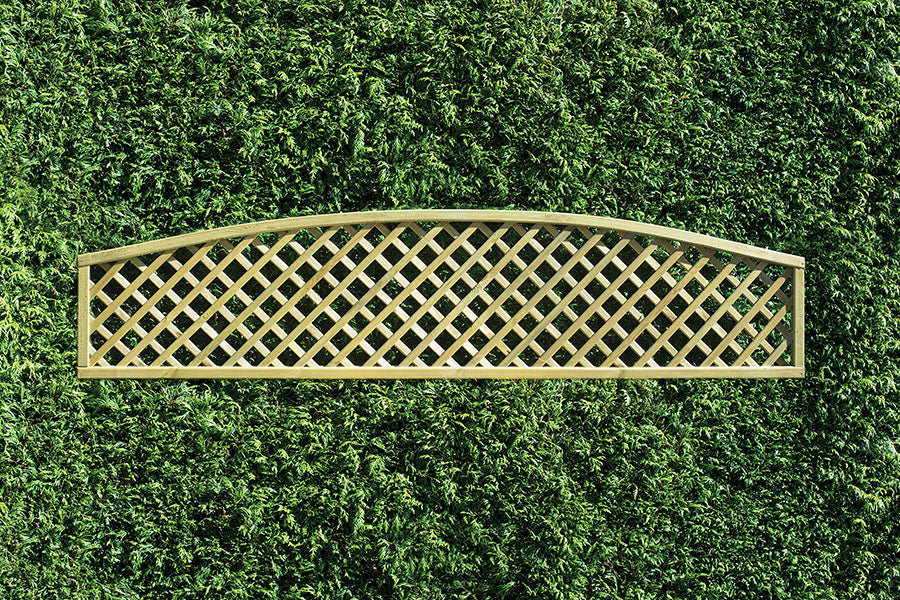

| DT1 | 300mm | 1830mm | 410mm |

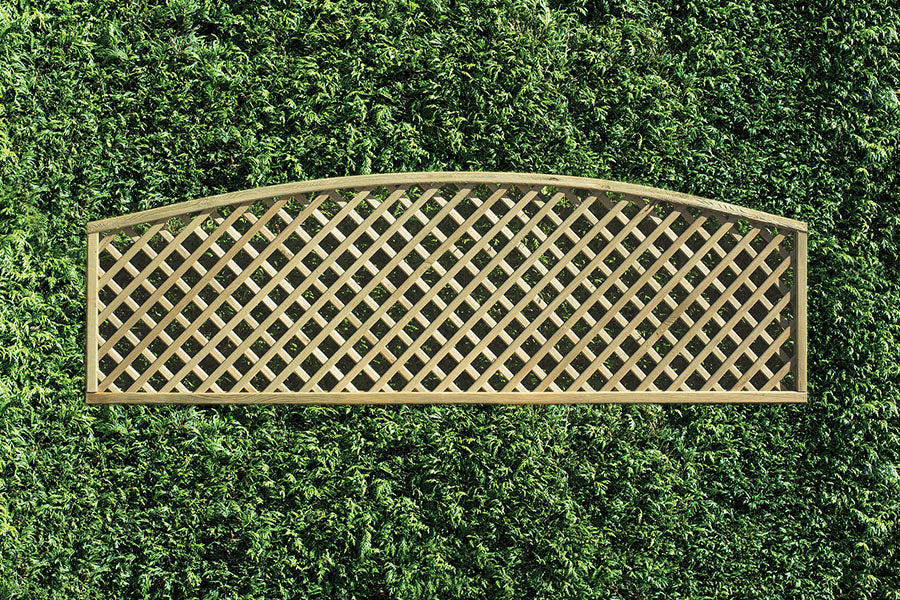

| DT3 | 450mm | 1830mm | 560mm |

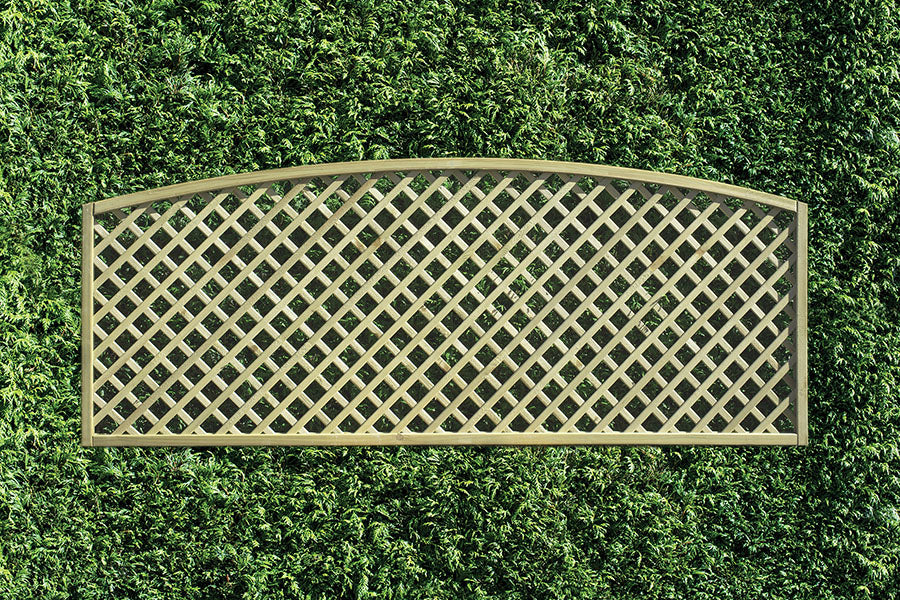

| DT5 | 600mm | 1830mm | 710mm |

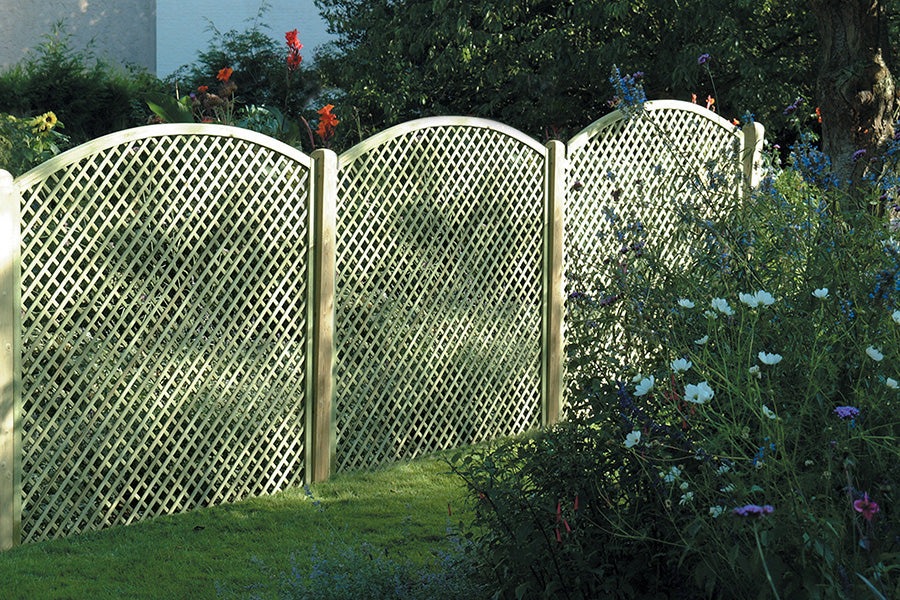

| DT14 | 1600mm | 1830mm | 1800mm |

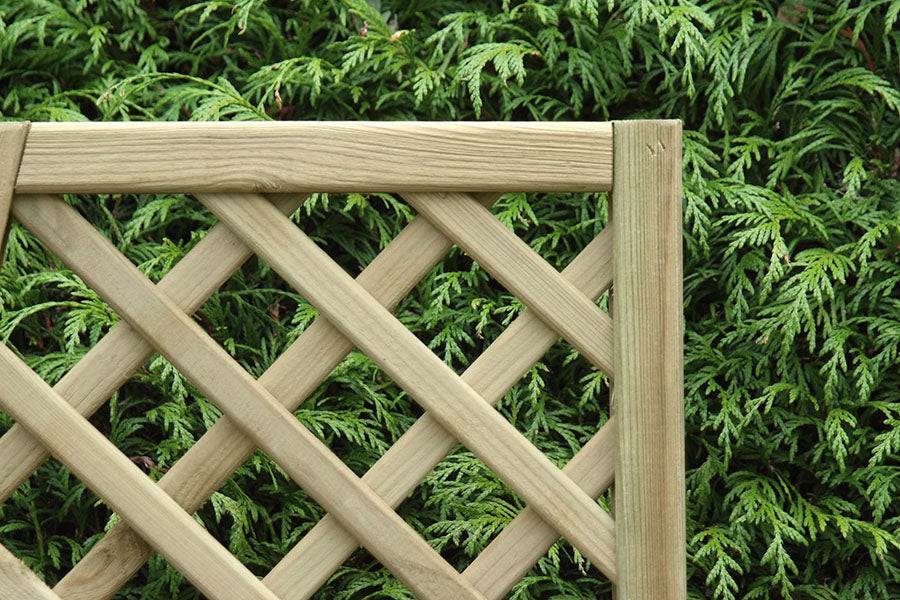

Construction details
- Planed pressure-treated softwood for exterior use
- Approximately 20mm-wide x 8mm-thick lattice strips
- Approximately 40mm openings measured from the inside edges
- Approximately 30mm x 30mm framing on DT1, DT3 and DT5
- Approximately 45mm x 45mm framing on DT14
- Planed frame with rounded corners
Where it works best
- Adding decorative height above fence panels or walls
- Supporting light climbing plants
- Creating partial screening without a fully closed boundary
- Using DT14 as a taller decorative lattice panel
Posts and fixings
For a freestanding trellis run, pair the panel with treated timber fence posts. Galvanised fence panel clips can secure compatible trellis to timber posts; browse postmix and fencing fixings for the rest of the installation. Browse all Trellis Panels for rectangular, convex and Omega styles, or see Fence Panels for solid and decorative boundary panels.
Size note: shaped lattice sizes are listed by shoulder height x width, not by the highest point of the arch.
Natural timber: colour variation, knots, small checks and limited movement can occur as the timber dries and weathers outdoors.
