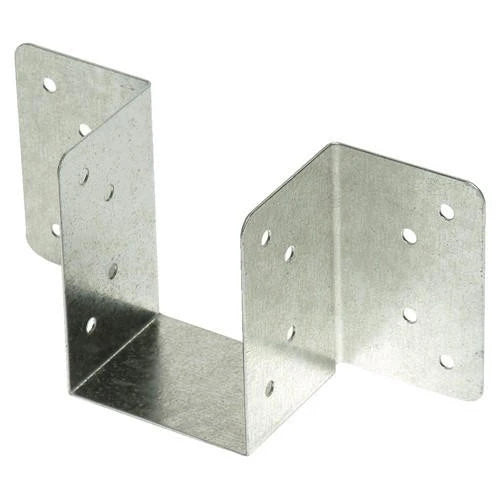

47mm No-Leg Mini Timber-to-Timber Joist Hanger
Compact 47mm timber-to-timber hanger for light-duty framing jobs such as trimming around ceiling hatches and other small timber openings. Unlike a standard joist hanger, the No-Leg Mini does not have the long wrap-over straps used on larger timber-to-timber hangers, making it a much more compact fixing for lighter applications.
What is a timber-to-timber joist hanger?
A timber-to-timber hanger is a metal bracket used to support the end of one piece of timber where it meets another.
Rather than relying solely on nails or screws driven through the end of the timber, the hanger forms a metal seat around the supported timber and transfers the connection back into the supporting timber.
What does “No-Leg Mini” mean?
Standard timber-to-timber joist hangers have longer strap sections or legs which extend up the supporting timber and can be wrapped over where required.
This No-Leg Mini version is deliberately much smaller.
It is intended for light-duty timber connections where a full-size joist hanger would be unnecessary, particularly small framed openings and trimming work.
What is it used for?
Samac specifically recommends the Mini Joist Hanger for:
-
Trimming around ceiling hatches
-
Loft-hatch framing
-
Small timber framed openings
-
Similar light-duty timber-to-timber connections
For example, when creating a ceiling hatch, shorter trimmer timbers may need to terminate against another timber rather than running continuously to a wall. A mini hanger provides a neat metal connection between those timbers.
What does the 47mm size mean?
This is the 47mm size in Samac's No-Leg Mini hanger range.
Before ordering, check the actual dimensions of the timber you intend to support and make sure the hanger size is appropriate. Timber sold by its nominal size can have different finished dimensions depending on whether it is sawn or machined.
The hanger is suitable for timber up to 100mm deep.
Why choose this instead of a standard joist hanger?
Choose the No-Leg Mini when you're making a small, light-duty timber connection and don't need the long legs of a conventional timber-to-timber hanger.
A standard joist hanger is the more appropriate type where the connection forms part of a larger floor, roof or other load-bearing structure and the hanger has been specified for that job.
This Mini Hanger should not automatically be substituted for a structural joist hanger simply because the timber fits inside it.
Who uses them?
Common users include:
-
Carpenters
-
Joiners
-
Builders
-
Loft installers
-
Property maintenance trades
-
DIY users constructing ceiling or loft hatches
Important fixing considerations
The strength of a timber connector depends on more than the hanger itself. The timber, fixing type, fixing quantity and the load being supported all affect the finished connection.
Use appropriate timber-connector fixings through the provided fixing holes and follow the requirements of the job.
For structural or load-critical work, use a hanger and fixing specification suitable for the calculated load rather than treating this light-duty Mini Hanger as a universal joist fixing.
Product details
-
Type: No-Leg Mini timber-to-timber hanger
-
Size: 47mm
-
Material: Galvanised steel
-
Steel thickness: 0.9mm
-
Maximum timber depth: 100mm
-
Application: Light-duty timber-to-timber connections
-
Typical use: Ceiling hatch and similar trimming work
-
Supplier pack quantity: 100
-
Wern-Wood sale unit: Individual hanger
Price shown is for one individual hanger.
